S2 2-Wire Digital Video Entry Panels

2 Wires to transmit Audio and Video Data. Entry Panel Range

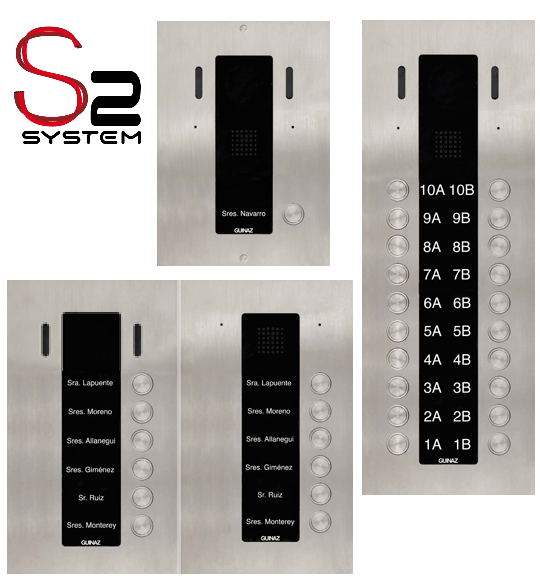

Alea Video Entry Panel

S2 Alea 2-WIRE Entrance Panels


Features

  • • Front stainless steel 2 mm thick and smoked methacrylate of 5 mm, which gives it great strength
  • • Customisable backlit tag name
  • • High resistance to weathering (temperatures up to -30/+70 °C)
  • • Watertight Push Buttons and water evacuation system that minimizes fault possibilities from intrusion of moisture or liquid
  • • 2 wires transmit Audio, Video and power.
  • • No polarity issues.
  • • Colour video camera with lighting support using bright leds, jumper settings to select the type of cable which is to be transmitting the video signal (via 2 wires shared with Audio Data)
  • • Flush Mounting ,with clamping frame with hidden screws for perfect adjustment on the wall and vandal protection
  • • Anchoring mechanism that allows the ability to open the panel 180° either side to facilitate installation
  • • Power supply: 17 Vdc
  • • Consumption:Standby: 42.50 mA
  • • Ringer: 342.5 mA
  • • Audio + Video: 282.5 mA (min) 457.5 mA (max)
  • • Available 1-24 buttons
    • PDV501S PDV501SB

    PDV601S

    S2 Alea Entrance Panel
    Video - 1 push-button
    1 column

    PDV502S

    PDV602S

    S2 Alea Entrance Panel
    Video - 2 push-buttons
    1 column

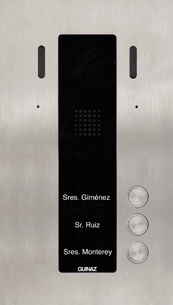

    PDV503S

    PDV603S

    S2 Alea Entrance Panel
    Video - 3 push-buttons
    1 column

    PDV504S

    PDV604S

    S2 Alea Entrance Panel
    Video - 4 push-buttons
    1 column

    PDV504

    PDV604

    S2 Alea Entrance Panel
    Video - 4 push-buttons
    2 columns

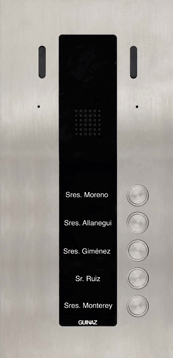

    PDV505S

    PDV605S

    S2 Alea Entrance Panel
    Video - 5 push-buttons
    1 column

    PDV506S

    PDV606S

    S2 Alea Entrance Panel
    Video - 6 push-buttons
    1 column

    PDV506

    PDV606

    S2 Alea Entrance Panel
    Video - 6 push-buttons
    2 columns

    PDV507S

    PDV607S

    S2 Alea Entrance Panel
    Video - 7 push-buttons
    1 column

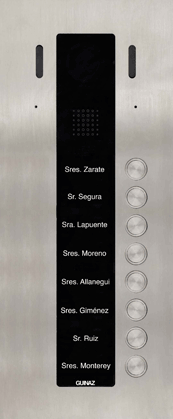

    PDV508S

    PDV608S

    S2 Alea Entrance Panel
    Video - 8 push-buttons
    1 column

    PDV508

    PDV608

    S2 Alea Entrance Panel
    Video - 8 push-buttons
    2 columns

    PDV509

    PDV609

    S2 Alea Entrance Panel
    Video - 9 push-buttons
    1 column

    PDV510S

    PDV610S

    S2 Alea Entrance Panel
    Video - 10 push-buttons
    1 column

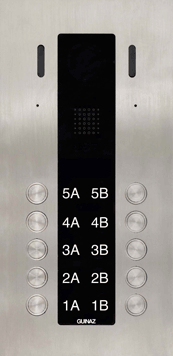

    PDV510

    PDV610

    S2 Alea Entrance Panel
    Video - 10 push-buttons
    2 columns

    PDV512SH

    PDV612SH

    S2 Alea Entrance Panel
    Video - 12 push-buttons
    1 column - 2 panels

    PDV512

    PDV612

    S2 Alea Entrance Panel
    Video - 12 push-buttons
    2 columns

    PDV514SH

    PDV614SH

    S2 Alea Entrance Panel - Video
    14 push-buttons in 1 column
    2 panels

    PDV514

    PDV614

    S2 Alea Entrance Panel
    Video - 14 push-buttons
    2 columns

    PDV516SH

    PDV616SH

    S2 Alea Entrance Panel
    Video - 16 push-buttons
    1 column - 2 panels

    PDV516

    PDV616

    S2 Alea Entrance Panel
    Video - 16 push-buttons
    2 columns

    PDV518SH

    PDV618SH

    S2 Alea Entrance Panel
    Video - 18 push-buttons
    1 column - 2 panels

    PDV518

    PDV618

    S2 Alea Entrance Panel
    Video - 18 push-buttons
    2 columns

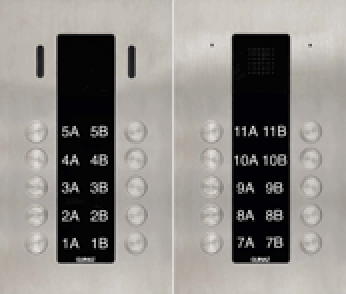

    PDV520H

    PDV620H

    S2 Alea Entrance Panel - Video
    20 push-buttons in 4 columns
    Horizontal 2 panels

    PDV520SH

    PDV620SH

    S2 Alea Entrance Panel - Video
    20 push-buttons in 1 column
    2 panels

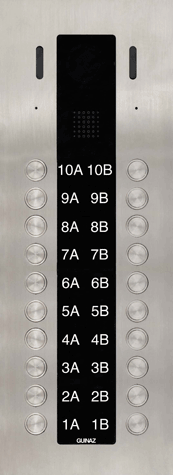

    PDV520V

    PDV620V

    S2 Alea Entrance Panel
    Video - 20 push-buttons
    2 columns

    PDV522H

    PDV622H

    S2 Alea Entrance Panel - Video
    22 push-buttons in 4 columns
    Horizontal - 2 panels

    PDV522SH

    PDV622SH

    S2 Alea Entrance Panel - Video
    22 push-button - columns
    Horizontal - 2 panels

    PDV524H

    PDV624H

    S2 Alea Entrance Panel - Video
    24 push-buttons in 4 columns
    Horizontal - 2 panels

    PDV524SH

    PDV624SH

    S2 Alea Entrance Panel - Video
    24 push-buttons in 2 columns
    Horizontal - 2 panels
