S2 2-WIRE ACCESSORY RANGE

S2 2-Wire, Tactile Kits contain all the necessary materials to carry out the installation of a digital video door entry system for a single dwelling, except opener.
Up to 15 secondary entrance panels can be added (1 additional F1340 power supply is required for every 2 additional entrance panels).


S2 2-Wire Power Supply Module

F1340

S2 2-WIRE Power supply unit

Specification:

  • Voltage Input: 90-264V- 0.6A 47-63hz
  • Voltage Output BUS IN/OUT 36V dc 1.7A
  • This device has an internal fuse that can be reset. After a short circuit, disconnect the power supply from the mains for one minute.
  • It has two input terminals BUS IN and two output terminals BUS OUT to connect the installation cables.

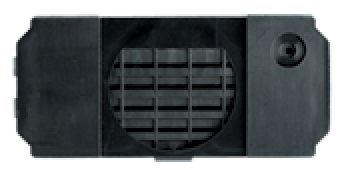

  • S2 2-Wire Compact free-hands digital audio control group

    G3270

    S2 2-WIRE Compact free-hands digital audio control group


    Specification:

  • Replacement Audio Control unit
  • Supports up to 15 secondary access and 160 dwellings
  • Power BUS: 36Vdc
  • Dimensions: 115mm(W) x 52mm(H) x 37mm(D)
