HD Tactile Colour Hands-free Monitors

HD 7" touch-screen surface and flush COLOUR digital monitors

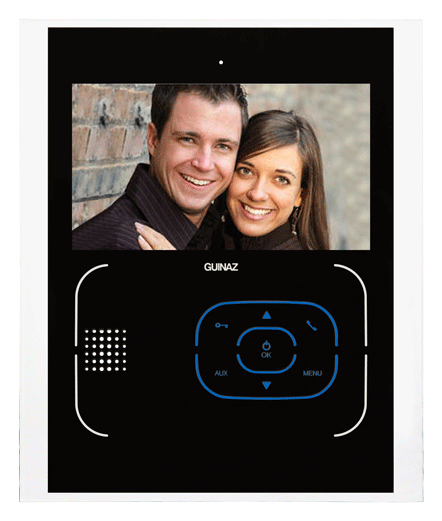

Tactile Monitor, M3770, M3770E

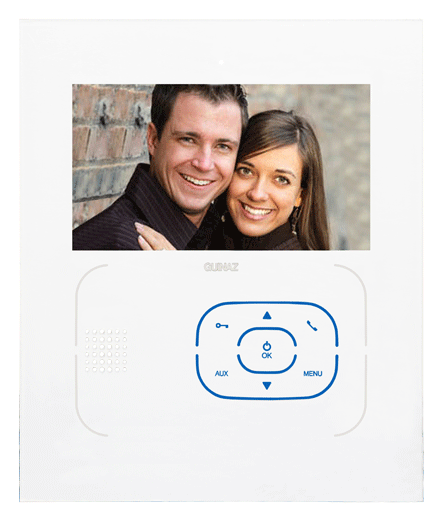

ICE White Tactile Monitor, M3770W, M3770EW

HD 7" Tactile Digital Hands-free Colour Monitor


Slim HD 7" touch-screen surface and flush mounted COLOUR digital monitor. Manufactured in steel and methacrylate. Integrated second ring tone feature activated by an additional call button to announce a call from another entrance or gate for example without the need to install a full entry panel.
The ability to establish covert audio and video communication with the entry panel including activating the door-opener without a previous call.

Features

  • Digital Slimline monitor, colour TFT display of 7" High Definition image resolution
  • Tactile "Touch" technology with blue LED backlighting
  • On-screen configuration menu for the installer and end user
  • Front screen thickness 4 mm
  • Authentic hands-free communication
  • Double opening and concierge call function
  • Configurable and programmable auxiliary key functions
  • Exceptional audio and video quality
  • Electronic volume control
  • 4 selectable ringtones
  • Rotating video surveillance allowing the ability to view external CCTV cameras
  • Adjustable brightness and color balance
  • Includes card terminals
  • Consumption: On Display: 290 mA
  • ...........................Standby: 10 mA
  • Supply voltage: 17 Vdc
  • Dimensions: 256 (w) x 214 (h) mm
  • .........Flush: 4 mm (d)
  • .........Surface: 26,5 mm (d)

    • Additional features

  • Comes in "Standard Black" or "ICE White" finish
  • Surface mount and flush mount versions

    • Models available

  • M3770 - Standard Black, surface mounted
  • M3770W - "ICE" White, surface mounted
  • M3770E - Standard Black, flush mounted (requires flush mount box)
  • M3770EW - "ICE" White, flush mounted (requires flush mount box)
