Guinaz Door Entry Intercom Systems

Alea Keypad Digital Video Entry Panel

Full panel keypad entry including access control

The Alea, Slimline Entry Panel is the smallest and neatest panel in our wide range. Ideal where you want an unobtrusive panel but the full features of our classic range.

DV510

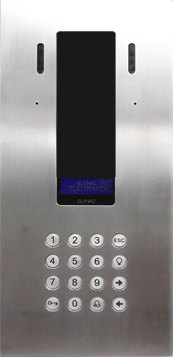

ALEA VIDEO KEYPAD ENTRY PANEL

ALEA VIDEO KEYPAD ENTRY PANEL


Features

  • Digital Compact Entry Panel in stainless steel for digital video color systems. Color handsfree (M3750 monitors, M3740V2/T, M1747V2ET) which allows to enter up to 16 opening door codes
  • As interior access, the system supports for each block 64 Entry Panels of this model and 255 dwellings. As external access the system supports by installation 63 exterior accesses and manages 254 Blocks of 64 accesses and 255 dwellings each one, making a total of 64,770 dwellings
  • The audio control group of this panel is capable, by itself, to manage communication between all elements of the installation, without installing any intermediate element as selectors, changers,bus distributors or similar elements
  • The configuration of this panel is made through the keypad or via a pc/ computer with a computer program called EASY PRO delivered separately
  • Made of stainless steel 2 mm thickness
  • To make the call to housing and counseling. Provides Viewer of two lines for displaying the call, TV camera with high leds brightness, adjust the lens position and methacrylate plate high resistance
  • Power supply: 17 Vdc
  • Consumption: Standby: 109.8 mA
  • Ringer: 392.8 mA
  • Audio + Video: 357.8 mA (MIN) 552.8 mA (MAX)
  • Dimensions: 150 x 323 mm
