Access Control

Keypad Access, Bluetooth Access.

Digital coded access module for up to 6b users with a code between 3-7 digitsDigital coded access module for up to 6b users with a code between 3-7 digits

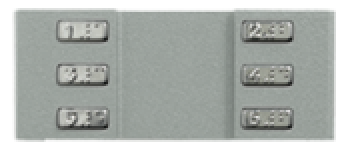

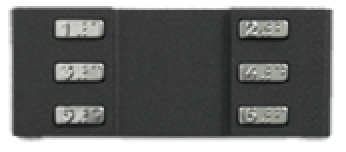

G0400 / G0400A

Digital Coded 6 Button Access Module.

Front and electronics to activate the lock with a code or multiple codes. Can be integrated in modular system entry panels, both analogue and digital. Supports up to 6 different codes which may be 3 to 7 digits long. Using 6 buttons numbered 1 to 6 (with corresponding code in Braille). Frontal aluminum 1.7 mm thickness, anodized aluminum and stainless steel push buttons.

Specification:

  • 6 User, 6 Button Access Control Module
  • 3-7 Digit Access Code
  • Activation time setable between 1,3,5 or 7 seconds
  • Anthracite or Aluminium Finish
  • Dimensions: 138mm(W) x 56mm(H) x 1.7mm
    • S2 2-Wire Compact free-hands digital audio control group

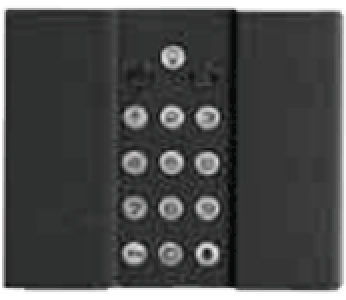

    GD0401

    Digital Coded Access Keypad Module


    Alphanumeric keyboard with buttons. activating the opener by entering a valid code. Supports up to 16 different codes / users, (3 to 6 digits each). Always install in digital entry panels with AUDIO control groups COMPACT PLUS.

    Specification:

  • 16 User Keypad Access Control Module
  • 3-6 Digit Access Code
  • Used in conjunction with a Digital Audio Control Group
  • Anthracite or Aluminium Finish
  • Dimensions: 138mm(W) x 103mm(H))
    • Alea Keypad Access Module

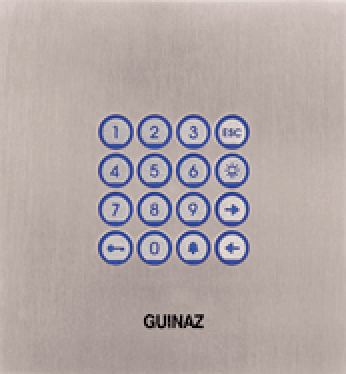

    GD0501

    Alea Digital Coded Access Keypad Module


    Front and electronics to activate the lock with a code or multiple codes. Coded Access Module can be installed independently or in Guinaz digital Intercom system installations. The user can configure up to 100 passcodes, each one of them with a minimum of 3 digits and a maximum of 7 digits.

    Specification:

  • 100 User Keypad Access Control Module
  • 3-7 Digit Access Code
  • Can be used as a Stand-alone Access Control Unit
  • Stainless Steel Finish
  • Power: 12Vac / 17Vdc
  • Dimensions: 162mm(W) x 150mm(H) x 2mm

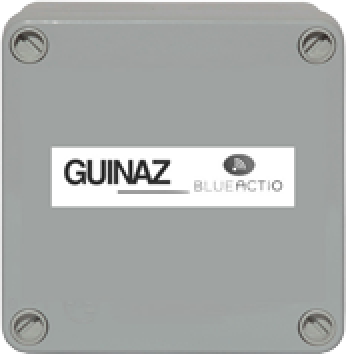

    • BlueActio Gate or Garage Door opener

    GD0506

    BLUETOOTH Access Module


    Allows, through the mobile phone Bluetooth connection the ability to operate the garage door, gate or barrier of any individual property or public and private car parks. Available for any platform, (Apple, Android, Blackberry) and compatible with all traditional solutions of access, conveniently and easily, increasing the levels of safety and comfort of your property. Operates from distances of less than 30 meters.
    Ideal for facilites management companies whole control access to private access and parking places. Access can be granted and denied remotely from the Blutooth device.

    System Elements:
  • Receiver MKS-RB It is located inside the building and is compatible with door remote opening systems .
  • MKS Base has got two antenna connections and two drive relays to control up to two doors in the same installation.
  • Active Antenna RAA MKS-located abroad. Range of 30 meters each one receives commands for a door opening/access.
  • Opening App for Mobile. The mobile must have Bluetooth.
  • Management software.
  • License management.
  • Mobile SMART BLUETOOTH PHONE.
    • User benefits:
  • Functional, very easy to use.
  • Higher levels of security.
  • Control of an unlimited number of doors from the same App.
  • (No GSM coverage required)
    • The mobile application is designed to use the smartphone as a remote control for access garages, houses, businesses, etc...
  • Unlimited number of buttons/configurable access within the same application.
  • The application is downloaded directly from the Apple Store, Google Play, Blackberry AppWall.
  • The application allows users a simple management of buttons that provide access to different doors.
    • The basic operations on the buttons are:
  • Opening
  • Editing, Deleting
  • Change key opening
  • The receiver, antenna and software are included in the retail price product
  • The license management and the high cost to the user is charged separately
